List of parts

Plastic parts

Part number	Quantity available	Description of part	Image

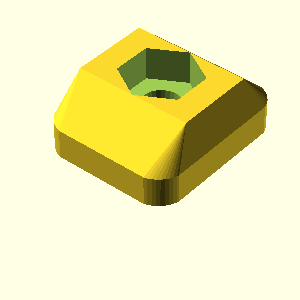

1	???	t-nut

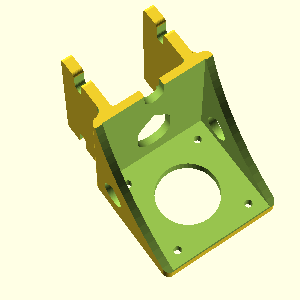

1	1	Motor housing

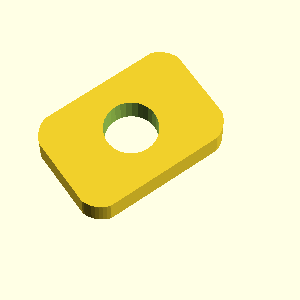

1	1	spacer motor housing

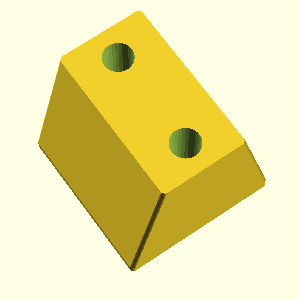

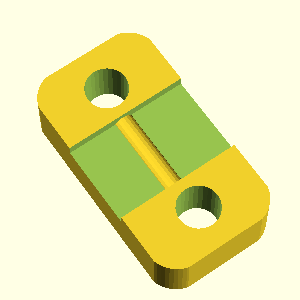

1	1	Belt holder Y
1	2	Belt holder XY

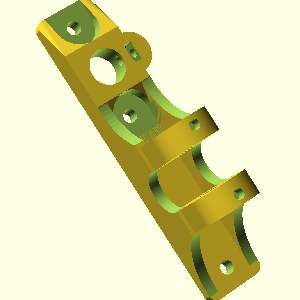

1	2	Belt tensioner XY
1	4	Spacer Z table

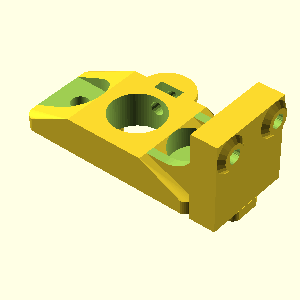

1	1	shaft support with opto support z

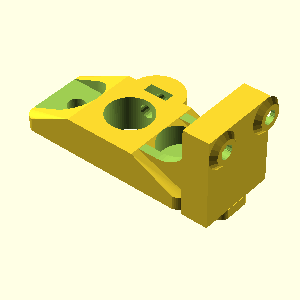

1	2	shaft support with opto support XY

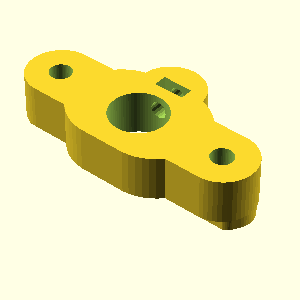

1	3	shaft support fix XY

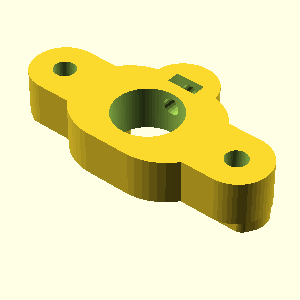

1	3	shaft support fix Z

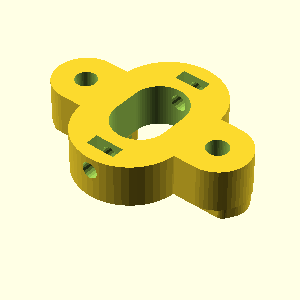

1	3	shaft support adjustable XY

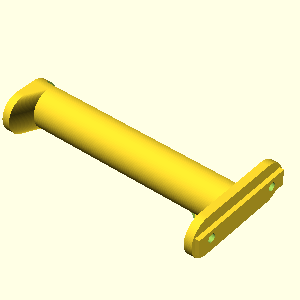

1	1	Spool holder

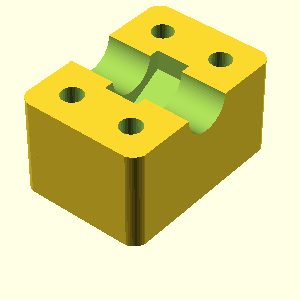

1	1	Nut housing Z interior

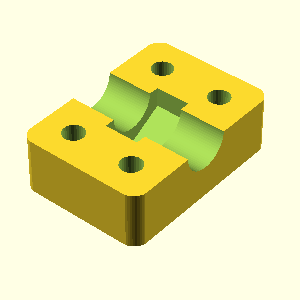

1	1	Nut housing Z exterior

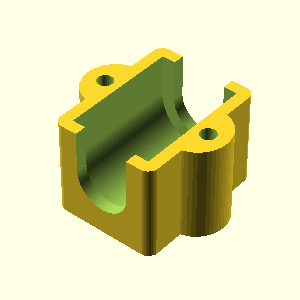

1	3	Linear bearing housing Z

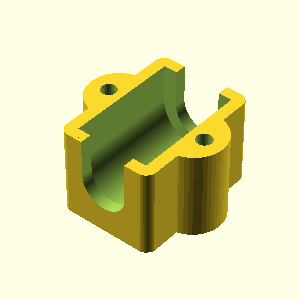

1	4	Linear bearing housing XY

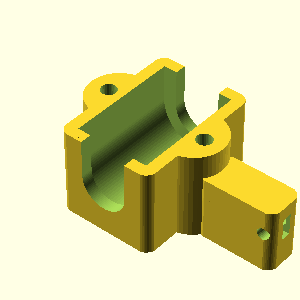

1	2	Linear bearing housing with screw hole XY
1	1	Linear bearing housing with screw hole Z

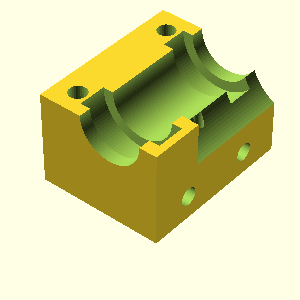

1	1	Hobbed bolt top housing

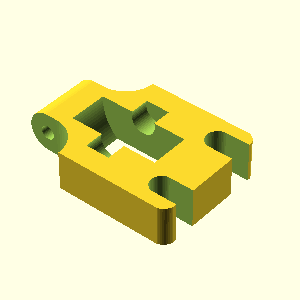

1	1	Filament pusher

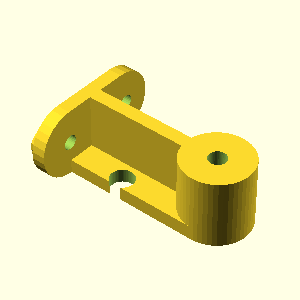

1	1	Filament guider

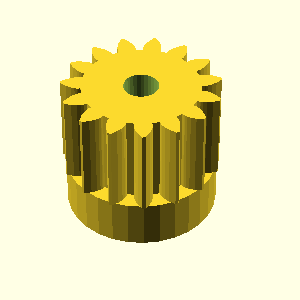

1	1	Extruder motor gear

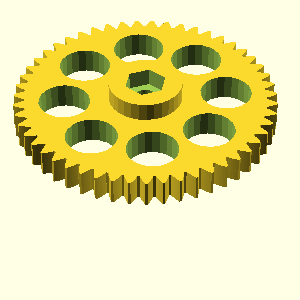

1	1	Extruder large gear

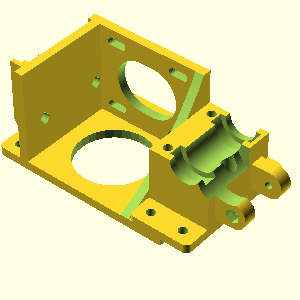

1	1	Extruder base

Pulleys and belts

Part number	Quantity available	Description of part	Image

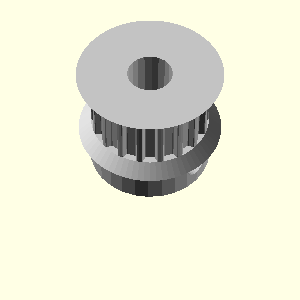

1	3	Pulley 18 teeth

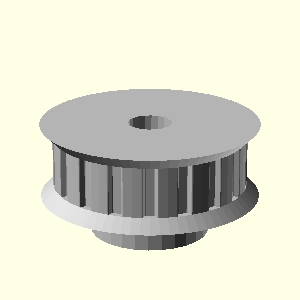

1	2	Pulley 30 teeth
1	2	Belt 650 mm
1	1	Belt 915 mm

Linear and radial bearings

Part number	Quantity available	Description of part	Image

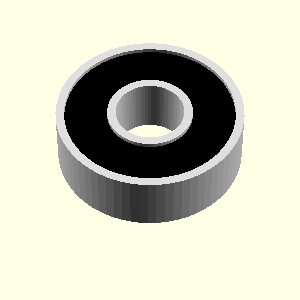

1	8	624rs radial bearing
1	3	626rs radial bearing
1	4	628rs ??? radial bearing

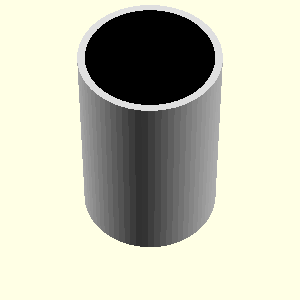

1	6	lm10uu linear bearing
1	4	lm12uu linear bearing

Aluminium sheets

Part number	Quantity available	Description of part	Image

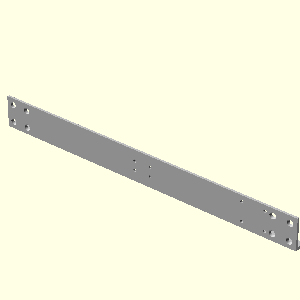

1	1	L profile

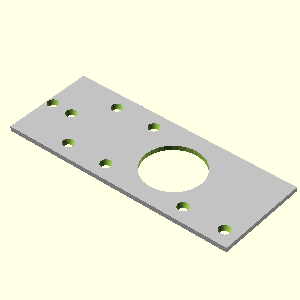

1	1	Extruder carriage

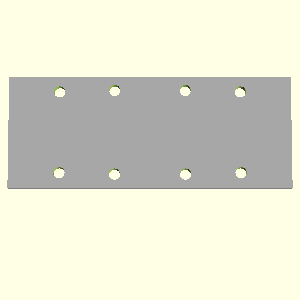

1	1	Lateral Y sheet

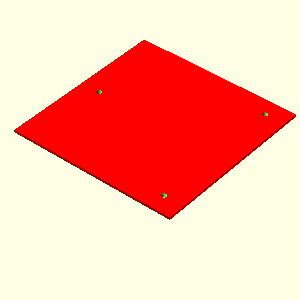

1	1	Print bed

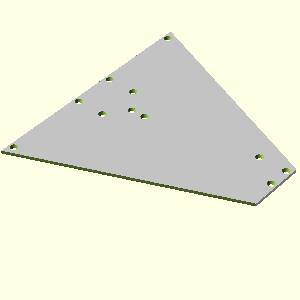

1	1	Y carriage trapezoidal

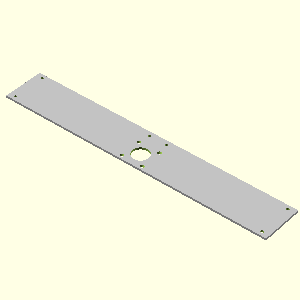

1	1	Z sheet

Screws nuts washers

Part number	Quantity available	Description of part	Image

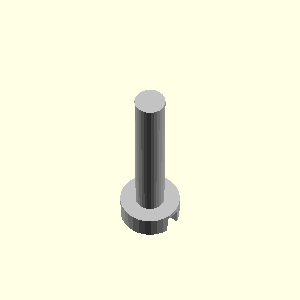

1	1	M3x10 regular screw

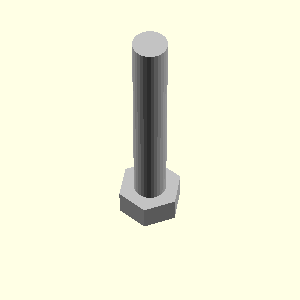

1	1	M4x12 hexa screw
1	1	M4x20 hexa screw

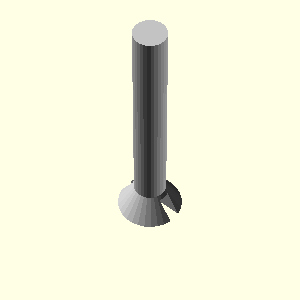

1	1	M4x35 sunken screw

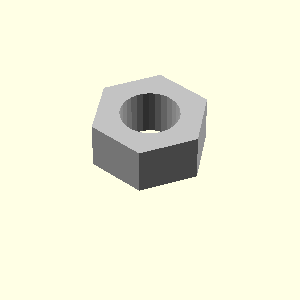

1	1	M4 nut

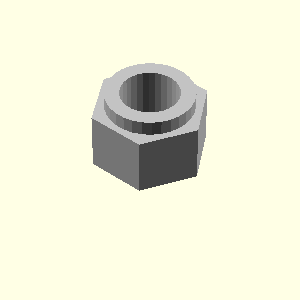

1	1	M4 autolock nut
1	1	M3 autolock nut

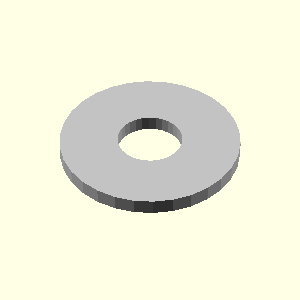

1	1	washer 4.3x9
1	1	washer 4.3x12

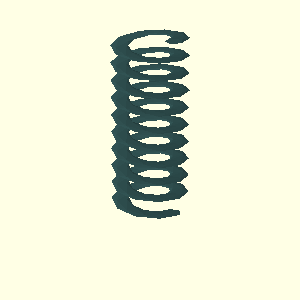

1	5	Spring

Electrical and electronics

Part number	Quantity available	Description of part	Image

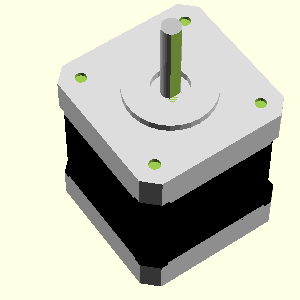

1	4	Nema 17 stepper
